Extruder screw barrel Diameter:15-360MM L/D=15-45 Screw structure and compression ratio can be designed according to different products and raw material. Material 1) 38CrMoALA (JIS SACM645) 2) Cr12MOV (JIS SKD-11) 3) 4Cr5MoSiV1(JIS SKD-61) 4) 42CrMo(AISI 4140) 5)40Cr 6) 9Cr18MOV Surface...

Product details

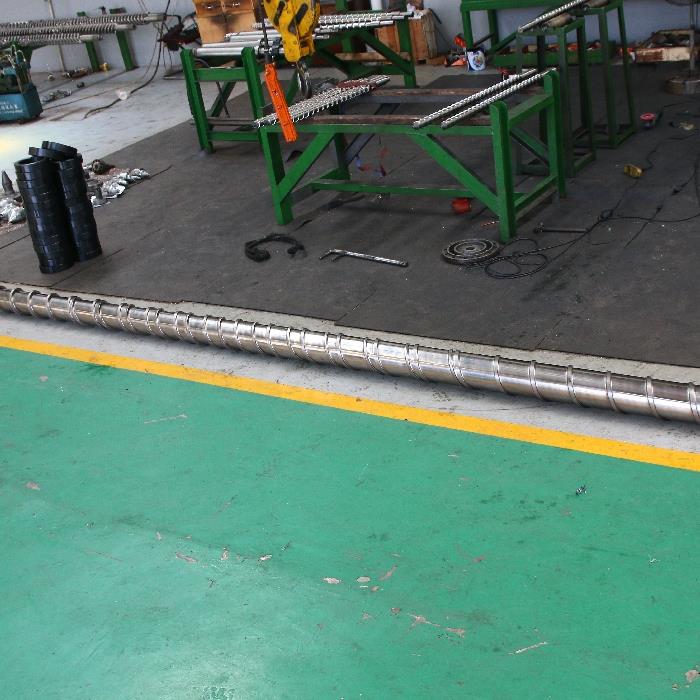

Extruder screw barrel

Diameter:15-360MM
L/D=15-45
Screw structure  and compression ratio can be designed according to different products and raw  material.
Material
1) 38CrMoALA (JIS  SACM645)
2) Cr12MOV (JIS  SKD-11)
3) 4Cr5MoSiV1(JIS  SKD-61)
4) 42CrMo(AISI 4140)
5)40Cr
6) 9Cr18MOV
Surface Treatment

  1. Heat  Treatment

  2. High  Frequency Treatment

  3. Nitriding  Treatment

  4. Hard  Chrome Plating Treatment

  5. Alloy  Plating Treatment

Technical  Parameter:


     Model

L/D

output capacity(kg/h)

screw rotation speed(rpm)

driving motor(kw)

center heigh(mm)

JS

20:1

3-5

10-60

1.1/1.5/2.2

1000-1400

JS

25:1

5-8

10-60

2.2/3.0/4.0

1000-1400

JS

25:1

5-10

10-60

2.2/3.0/4.0

1000-1400

JS

25-36:1

10-120

10-150

5.5-22

1000-1400

JS

25-36:1

60-300

20-150

22-75

1000

JS

25-36:1

200-450

20-150

30-132

1000

JS

25-36:1

180-600

20-110

30-185

1000-1100

JS

25-36:1

320-1000

20-90

75-280

1000-1250

JS

25-36:1

400-1300

20-75

90-400

1000-1300

























  1. Screw  type:common type, gradual type, sudden type, barrier type, pinned type,  exhaustive type, separate type, granulation type, wave type,mixed  type,double-head type, three-head type, multi head type etc.

  2. It is  suit for PA,PP,PC,PE,ABS,AS,PS,PVC,PMMA,LCP,PBT,PET,PPC,PPS,PAR,PO,Magnetic  Powder,Ceramic  Powder, Aluminium Powder,  Iron Powder, Wood Flour and other engineering plastic ,PVC,PE/PP pelleting.



Find excellent quality extruder screw barrel made in China from one of the largest manufacturers and suppliers - Jinsheng Bimetallic. Leveraging on advanced equipment and superior techniques, we can offer you extruder screw barrel with high resistance, high quality and competitive price. With many products in stock, we warmly welcome you to buy or wholesale our products.
